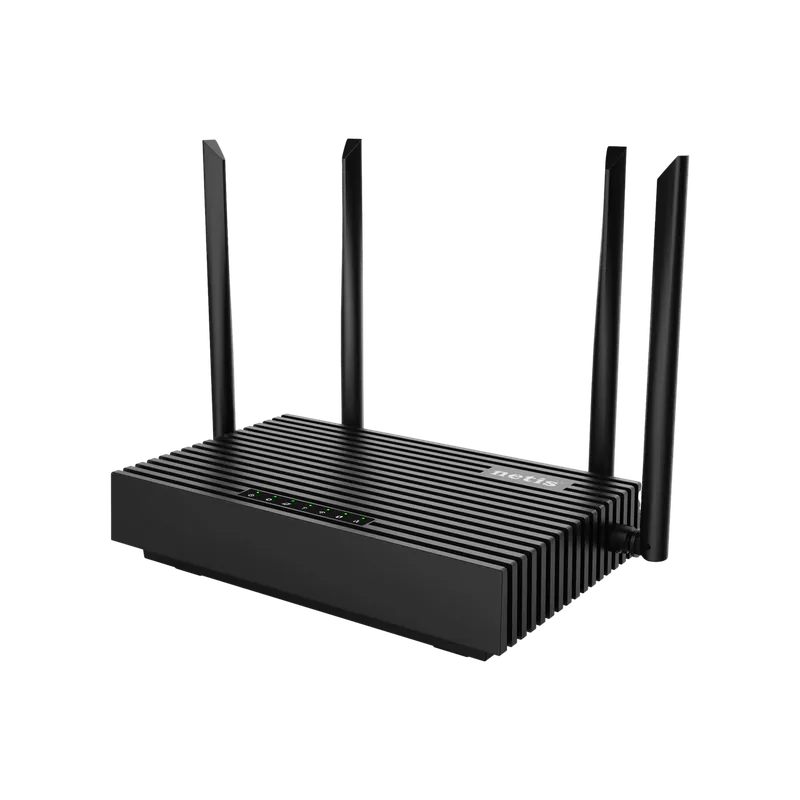

Netis NX32U/Netis N6v2
Specifications§
- Processor
- MediaTek MT7981B, aarch64, 1300 MHz
- Flash memory
- 128 MB NAND
- RAM
- 256 MB DDR3
- Ethernet
- 3 × 1G LAN + 1 × 1G WAN
- USB
- 1 × USB 3.0
- Wi-Fi chip
- MediaTek MT7976CN
- Wi-Fi 5 GHz
- AX, 160MHz, 2x2, 2402MB/s, 1024QAM
- Wi-Fi 2.4 GHz
- AX, 40MHz, 2x2, 574MB/s, 256QAM
Build features§
- FunctionalityExcept:
Cloud services
Components - Factory resetWith the Reset button
- Mesh buttonYes
- LEDsYes
- Mesh compatibilityWith original devices and clones
- Built-in storage70.9 MB, Entware can be installed
- Modem rebootWorks without a hardware mod
Preparing for flashing§
- Download and unpack the firmware archive The “Download” button is in the panel under the device name.
- Connect the router to the computer with a cable (Ethernet) Flashing over Wi-Fi is not possible.
Installing from stock firmware§
- Reset and setup Reset the router, go through the initial setup and set a password for the web interface.
- Running the script Run
Netis_NX32U_flasher.exeand enter the password you set. - Backups Before the installation, system backups are created in the script's folder — keep them in a safe place.
- Flashing Confirm the firmware installation and wait until it finishes.
After the reboot the device starts
Done!
Router access
- Web interface
- 192.168.1.1
- Login
admin- Password
12345678- Wi-Fi password
12345678
Reducing RAM usage (optional)
To reduce RAM usage, you can turn off WHNAT hardware acceleration — more details. Enter the commands in the router's CLI one at a time:
Enter one command at a time
interface WifiMaster1 no whnatno ppe hardwaresystem configuration save
Updating the firmware§
To update, use KeenBOOT or KeenKit — the methods for NAND memory.
Since version 5.0.7 the firmware can also be updated through the web interface.
Reverting to stock firmware§
The revert is done from a full backup through the KeenBOOT bootloader. The steps are in the instructions for MT7981.
