SmartBox Flash
Specifications§
- Processor
- MediaTek MT7621AT, MIPS, 880 MHz
- Flash memory
- 128 MB NAND
- RAM
- 256 MB DDR3
- Ethernet
- 2 × 1G LAN + 1 × 1G WAN
- USB
- 1 × USB 3.0
- Wi-Fi chip
- MediaTek MT7615DN
- Wi-Fi 5 GHz
- AC, 80MHz, 2x2, 867MB/s, 256QAM
- Wi-Fi 2.4 GHz
- N, 40MHz, 2x2, 300MB/s, 64QAM
Build features§
- FunctionalityExcept:
Cloud services
Components - Factory resetWith the Reset button
- LEDSystem
Internet connected - Mesh compatibilityWith original devices and clones
- Built-in storage55.2 MB, Entware can be installed
- Modem rebootRequires a hardware mod
Preparing for flashing§
- Download and unpack the firmware archive The “Download” button is in the panel under the device name.
- Connect the router to the computer with a cable (Ethernet) Flashing over Wi-Fi is not possible.
Installing from stock firmware§
First install the Breed bootloader (steps below), then choose one of the two flashing methods — Method #1 (via KeenBOOT, recommended) or Method #2 (via Breed and Telnet).
Installing the Breed bootloader§
-
Running the script Download the archive and run
Start_Flash.bat. The script saves an EEPROM backup, installs the Breed bootloader and reboots the router. -
Entering Breed After the reboot the Breed bootloader is available at
192.168.1.1. -
Backup In the Breed web interface, save
Backup→Full dump(128MB).
MethodINew, recommended§
- Replace the bootloader with KeenBOOT.
- Upload
Firmware,EEPROMandU-Configfrom the archive one by one through the web interface, following the instructions. - Reboot the device.
Done!
Router access
- Web interface
- 192.168.1.1
- Login
admin- Password
12345678- Wi-Fi password
12345678
MethodIIOld§
-
Serving the files Start
HFS.exeand drag all.binfiles from the firmware folder into its window.
Tip
To minimize installation problems, it is recommended to set the IP address
192.168.1.2on the network card.
-
Flashing over Telnet Start PuTTY, connect over Telnet to
192.168.1.1on port23and paste the commands with the right mouse button, waiting for the previous one to finish.Warning
- Turn off your OS firewall and antivirus beforehand.
- The messages skipped bad blocks and Flash erasure failed with -5 after entering the commands are normal.
Caution
- Each line is a separate command. If it fails, run it again.
- Compare the IP in the
wgetcommands below with the IP shown in HFS. In the Breed bootloader it always starts with192.168.1.xxx.
flash erase 0x80000 0x7f00000wget http://192.168.1.2/u-config.binflash write 0x80000 0x80001000 0x80000flash write 0x4040000 0x80001000 0x80000wget http://192.168.1.2/eeprom.binflash write 0x100000 0x80001000 0x80000flash write 0x40c0000 0x80001000 0x80000wget http://192.168.1.2/firmware.binflash write 0x180000 0x80001000 0x1AB3F00flash write 0x4140000 0x80001000 0x1AB3F00wget http://192.168.1.2/u-state.binflash write 0x3fc0000 0x80001000 0x80000env set autoboot.command "boot flash 0x4140000"env savereset
Sample console output
How to make sure everything was flashed correctly
The Settings section shows the device's service data (it is enough that it is there; some fields may differ).
The MAC address section shows your MAC address from the device label or the one you entered in the converter (it may differ by ±1 in the last character).
After the reboot the device starts.
Done!
Router access
- Web interface
- 192.168.1.1
- Login
admin- Password
12345678- Wi-Fi password
12345678
Updating the firmware§
To update, use any method for NAND memory.
Since version 5.0.7 the firmware can also be updated through the web interface.
Reverting to stock firmware§
You will need the backup saved before flashing. The steps are in the instructions for MT7621.
Rebooting the USB modem (USB-Mod)§
Info
The mod is needed to power-cycle the USB modem — more details

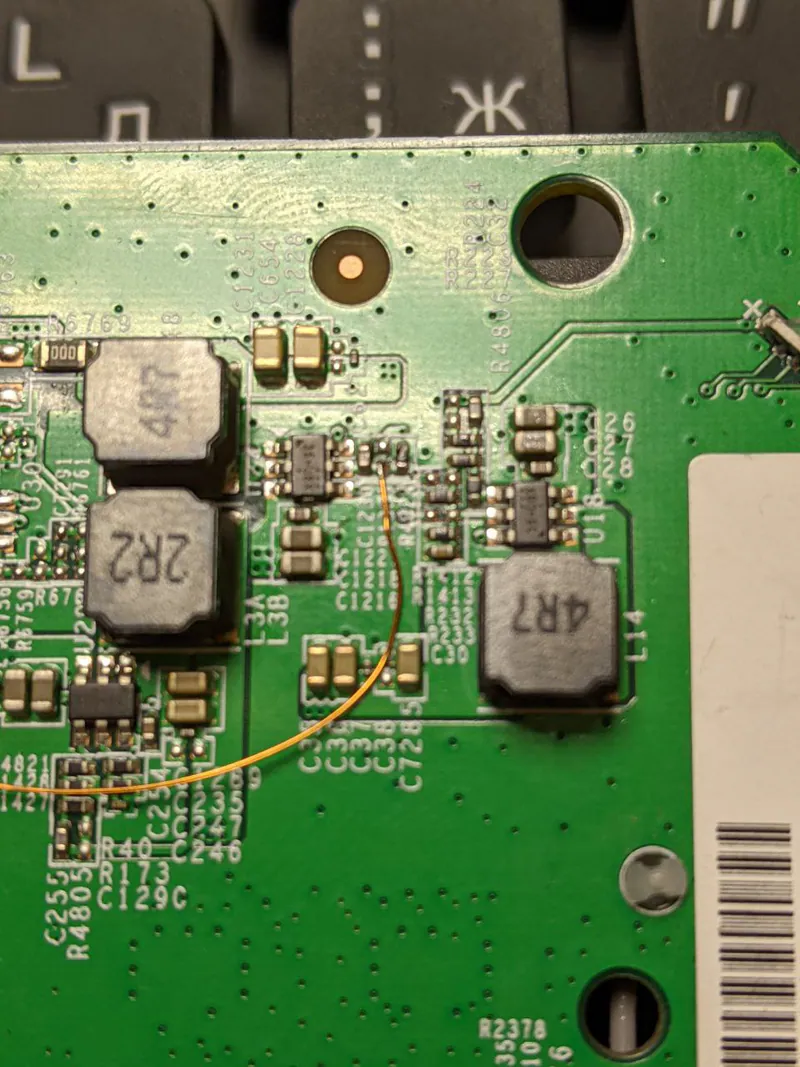

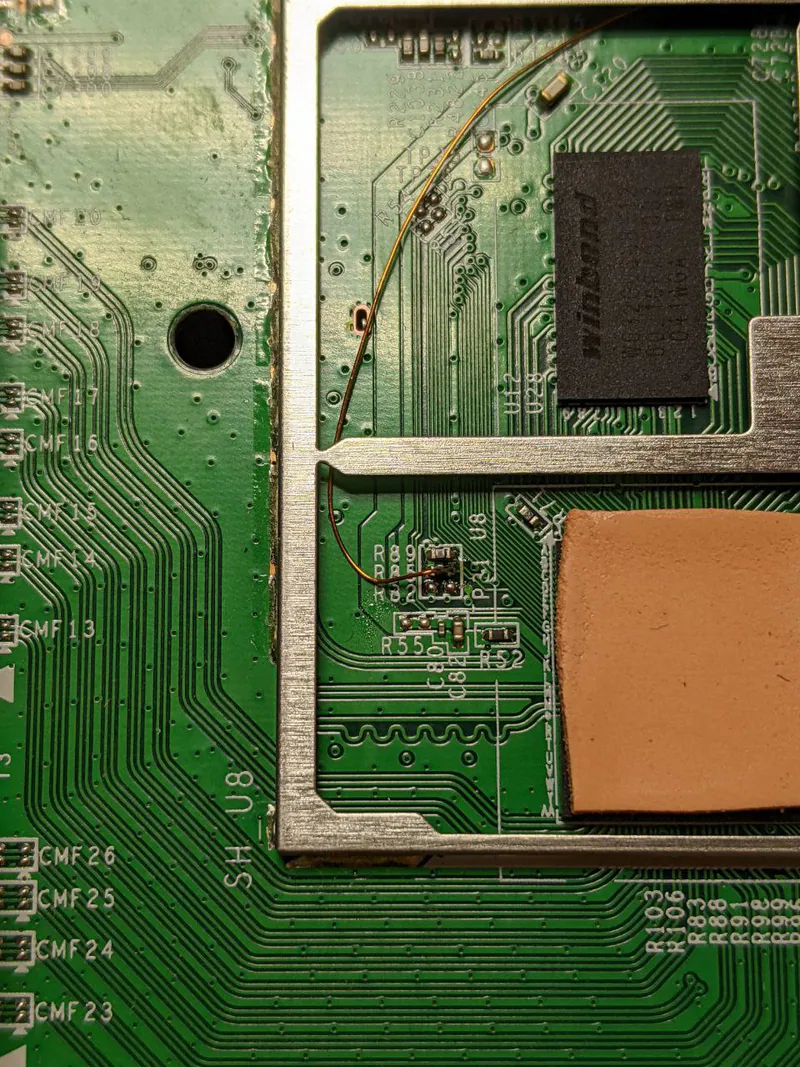

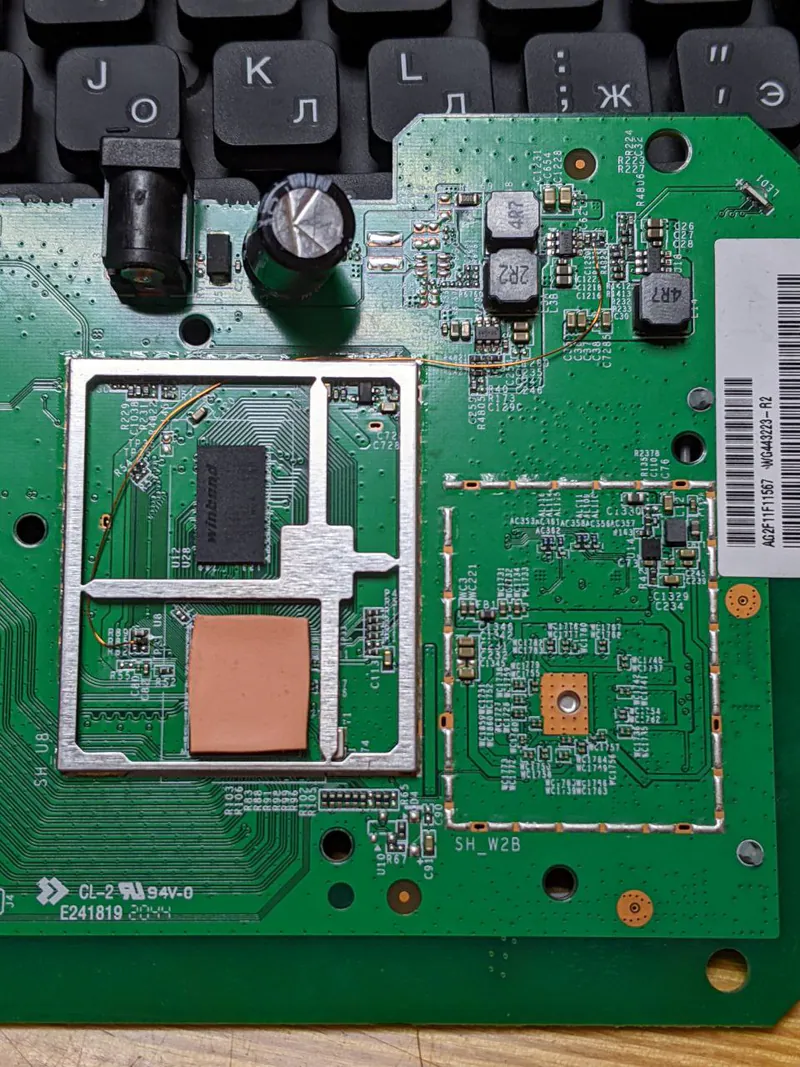

The right contact of R85 (without removing the resistor) can be used with the pad near the R1389 marking (with the resistor removed)
Instead of the R85 resistor you can use the free R82 pad, but keep in mind that on some batches the board may be of poor quality and the pad may come off easily. We recommend using R85. Instead of the R1389 resistor, the middle pin of the converter is an equally good alternative.
