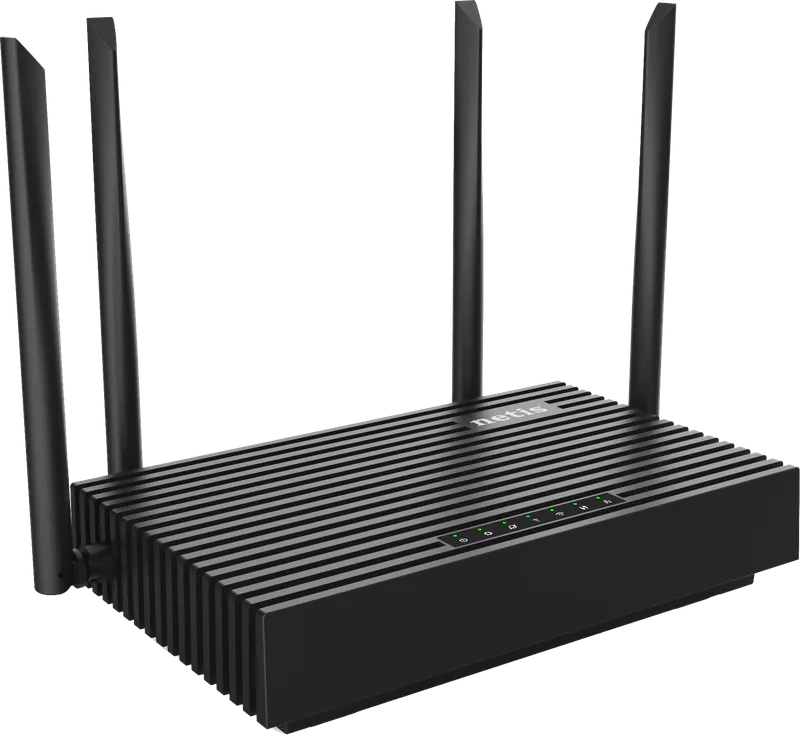

Netis N6 v1 AX1800

Specifications§

Processor

MediaTek MT7621AT, MIPS, 880 MHz

Flash memory

128 MB NAND

RAM

256 MB DDR3

Ethernet

4 × 1G LAN + 1 × 1G WAN

USB

1 × USB 3.0

Wi-Fi chip

MediaTek MT7905DAN + MediaTek MT7975DN

Wi-Fi 5 GHz

AX, 80MHz, 2x2, 1201MB/s, 1024QAM

Wi-Fi 2.4 GHz

AX, 40MHz, 2x2, 574MB/s, 256QAM

Build features§

• FunctionalityExcept:
  Cloud services
  Components
• Factory resetWith the Reset button
• WPS buttonConfigured as FN for any action within the system
• LEDsPower, Internet, USB
• Mesh compatibilityWith original devices and clones
• Built-in storage46.5 MB, Entware can be installed
• Modem rebootRequires a hardware mod

Preparing for flashing§

1. Download and unpack the firmware archive The “Download” button is in the panel under the device name.
2. Connect the router to the computer with a cable (Ethernet) Flashing over Wi-Fi is not possible.

Installing from stock firmware§

First install the Breed bootloader (steps below), then choose one of the two flashing methods — Method #1 (via KeenBOOT, recommended) or Method #2 (via Breed and Telnet).

Installing the Breed bootloader§

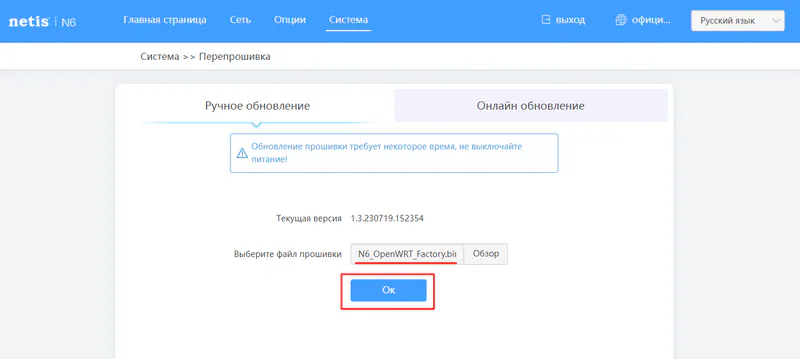

1. Installing OpenWrt Install FACTORY_N6_OpenWRT.bin from the Установка Breed (Breed installation) folder over the factory firmware with a regular update. If OpenWrt was already installed, reset its settings.



   Warning

   If Recovery opens after the installation, install 2_FACTORY_N6_OpenWRT.bin from it.

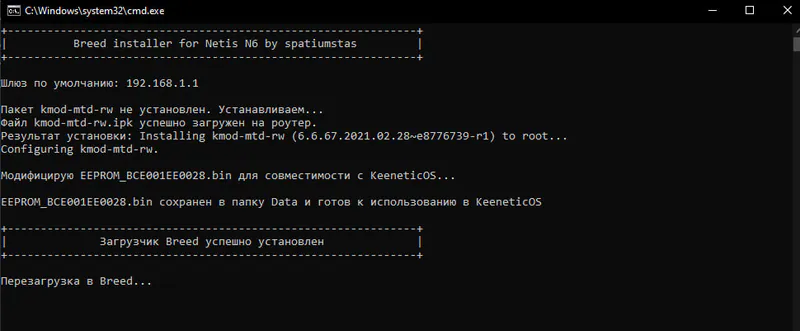

2. Running the script After OpenWrt starts, run !Start.bat on Windows 10/11. The script saves an EEPROM backup to the Keenetic folder, installs the bootloader and reboots the device into Breed.

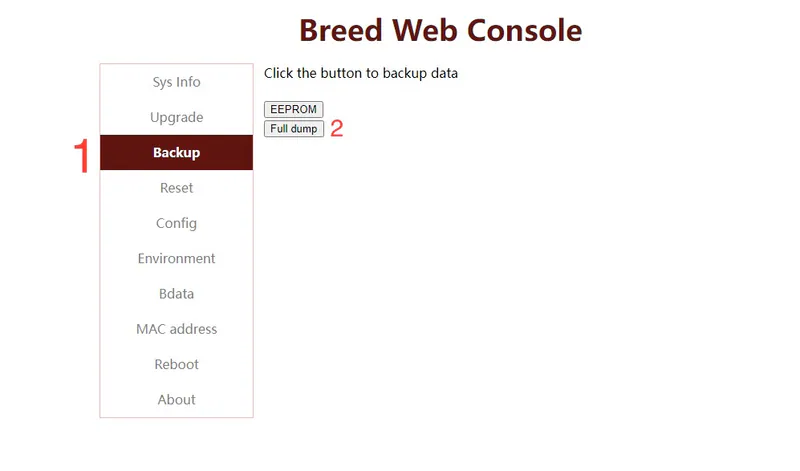

3. Backup Enter the Breed bootloader at 192.168.1.1 and save a Full dump in case you want to revert the firmware.



MethodINew, recommended§

1. Replace the bootloader with KeenBOOT.
2. Upload Firmware, EEPROM and U-Config from the archive one by one through the web interface, following the instructions.
3. Reboot the device.

MethodIIOld§

1. Serving the files Start HFS.exe and drag all .bin files from the Keenetic folder into its window.



   Tip

   To minimize installation problems, it is recommended to set the IP address 192.168.1.2 on the network card.



2. Flashing over Telnet Start PuTTY, connect over Telnet to 192.168.1.1 on port 23 and paste the commands with the right mouse button, waiting for the previous one to finish.

   Warning

   • Turn off your OS firewall and antivirus beforehand.
   • The messages skipped bad blocks and Flash erasure failed with -5 after entering the commands are normal.

   Caution

   • Each line is a separate command. If it fails, run it again.
   • Compare the IP in the wget commands below with the IP shown in HFS. In the Breed bootloader it always starts with 192.168.1.xxx.

After the reboot the device starts

Updating the firmware§

To update, use any method for NAND memory.

Since version 5.0.7 the firmware can also be updated through the web interface.

Reverting to stock firmware§

You will need the backup saved before flashing. The steps are in the instructions for MT7621.

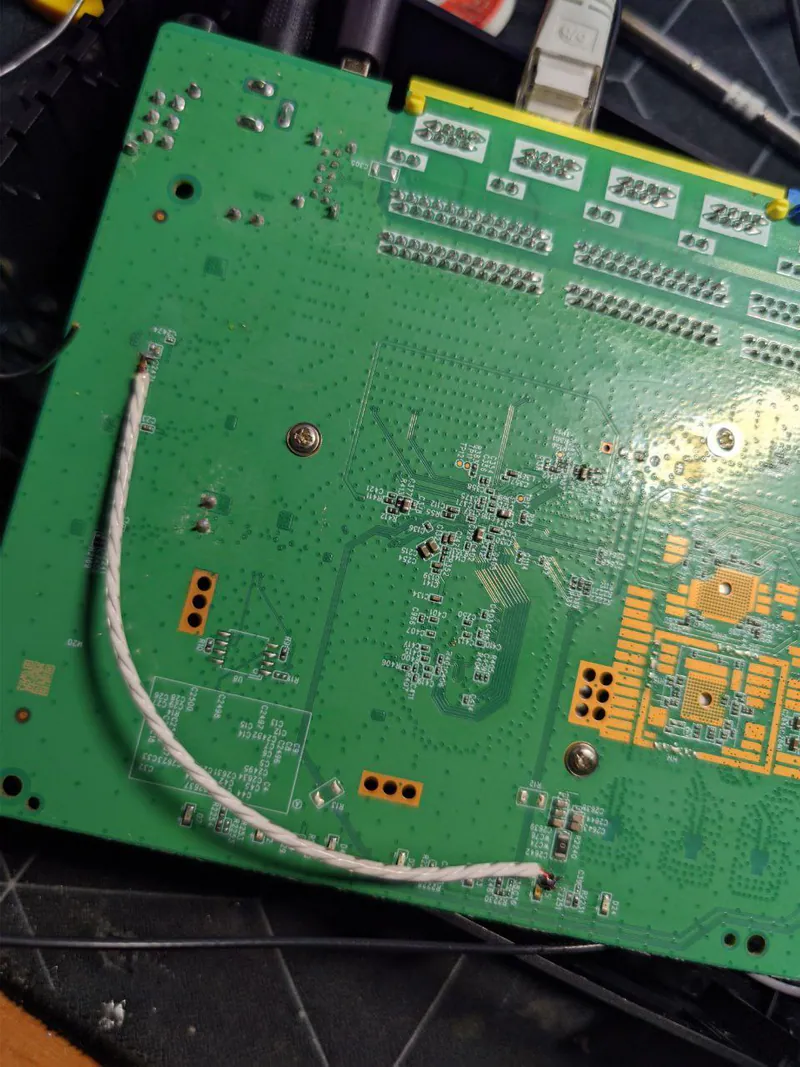

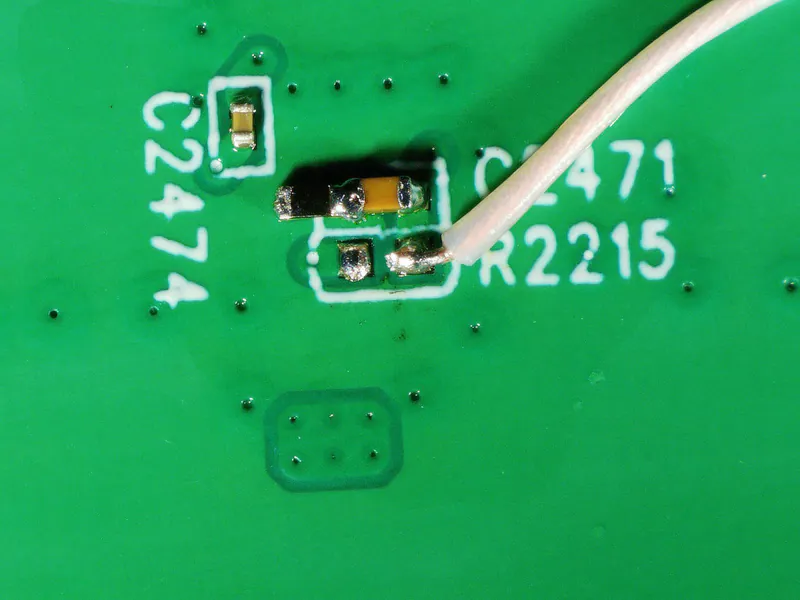

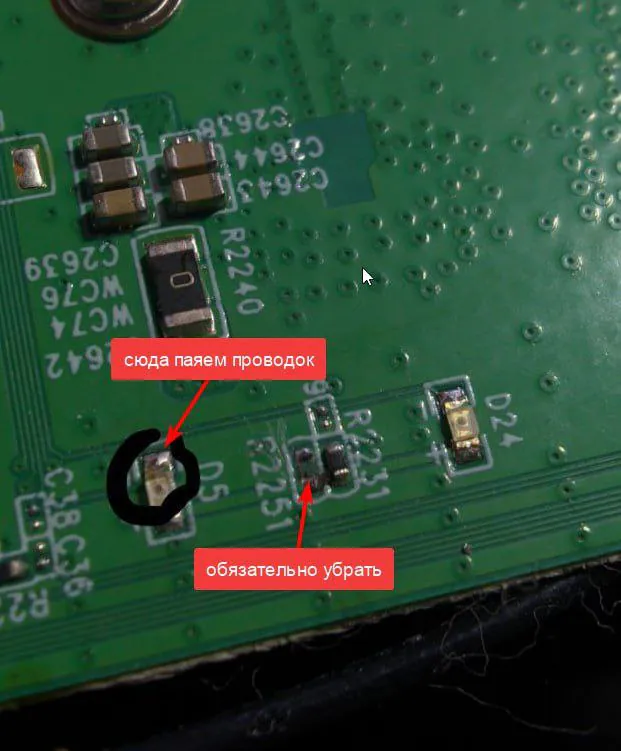

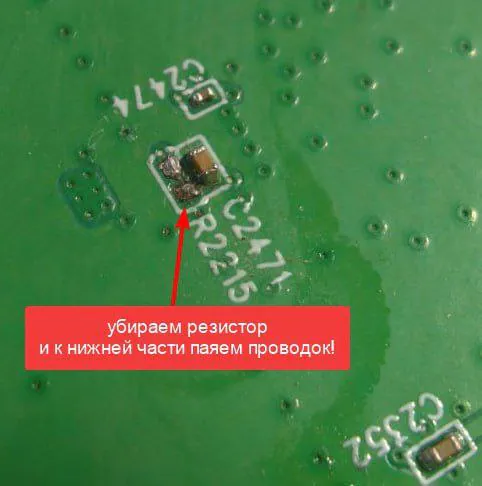

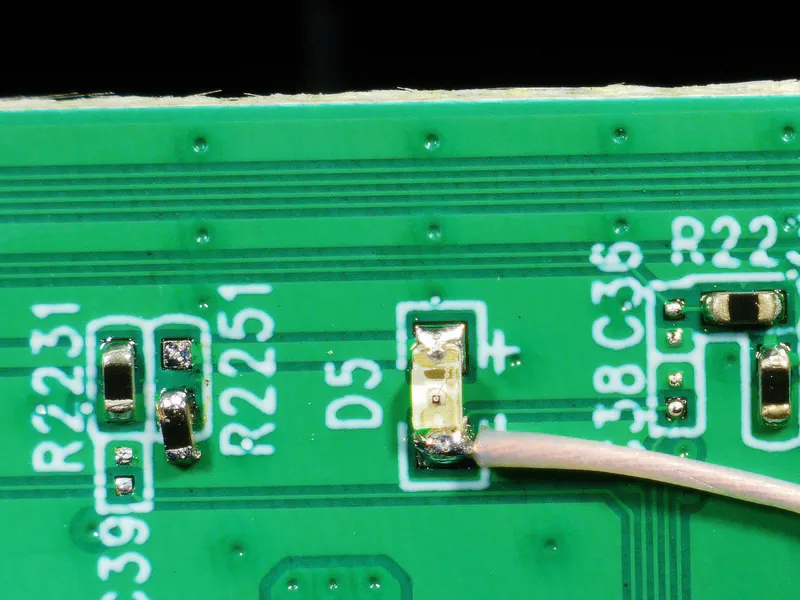

Rebooting the USB modem (USB-Mod)§

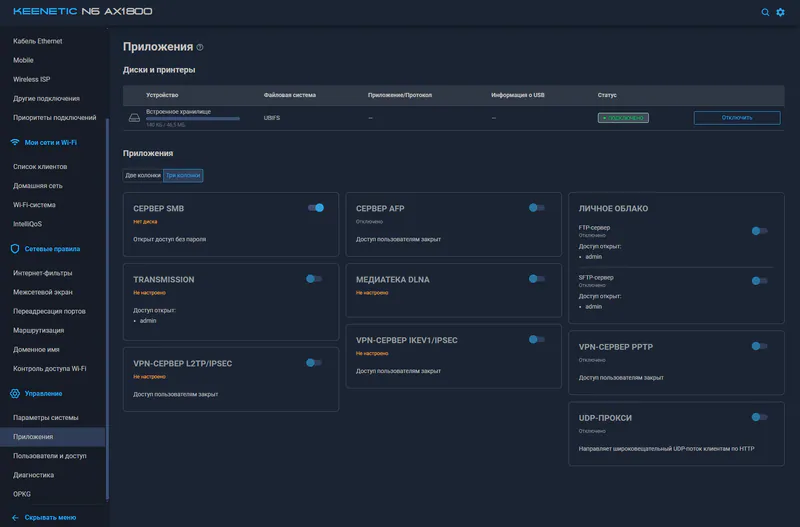

Screenshots§
